CANchecked Datalogger and Display (LHD GR Corolla)

CANchecked Datalogger and Display (LHD GR Corolla)

Regular price $620.00
Regular price Sale price $620.00
Sale Sold out

555 Engineering is proud to retail CANchecked Displays. We use this exact unit on our Development Car.

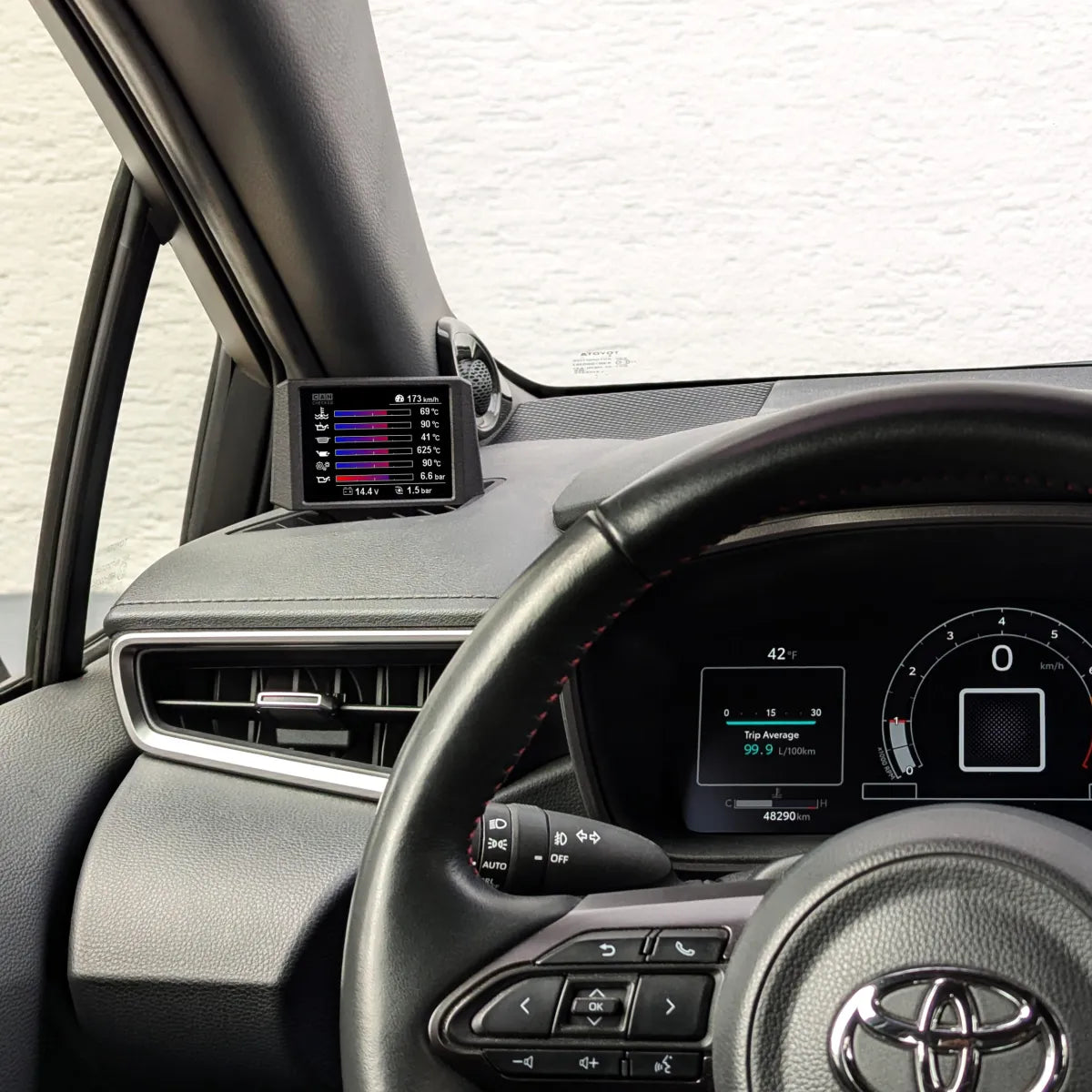

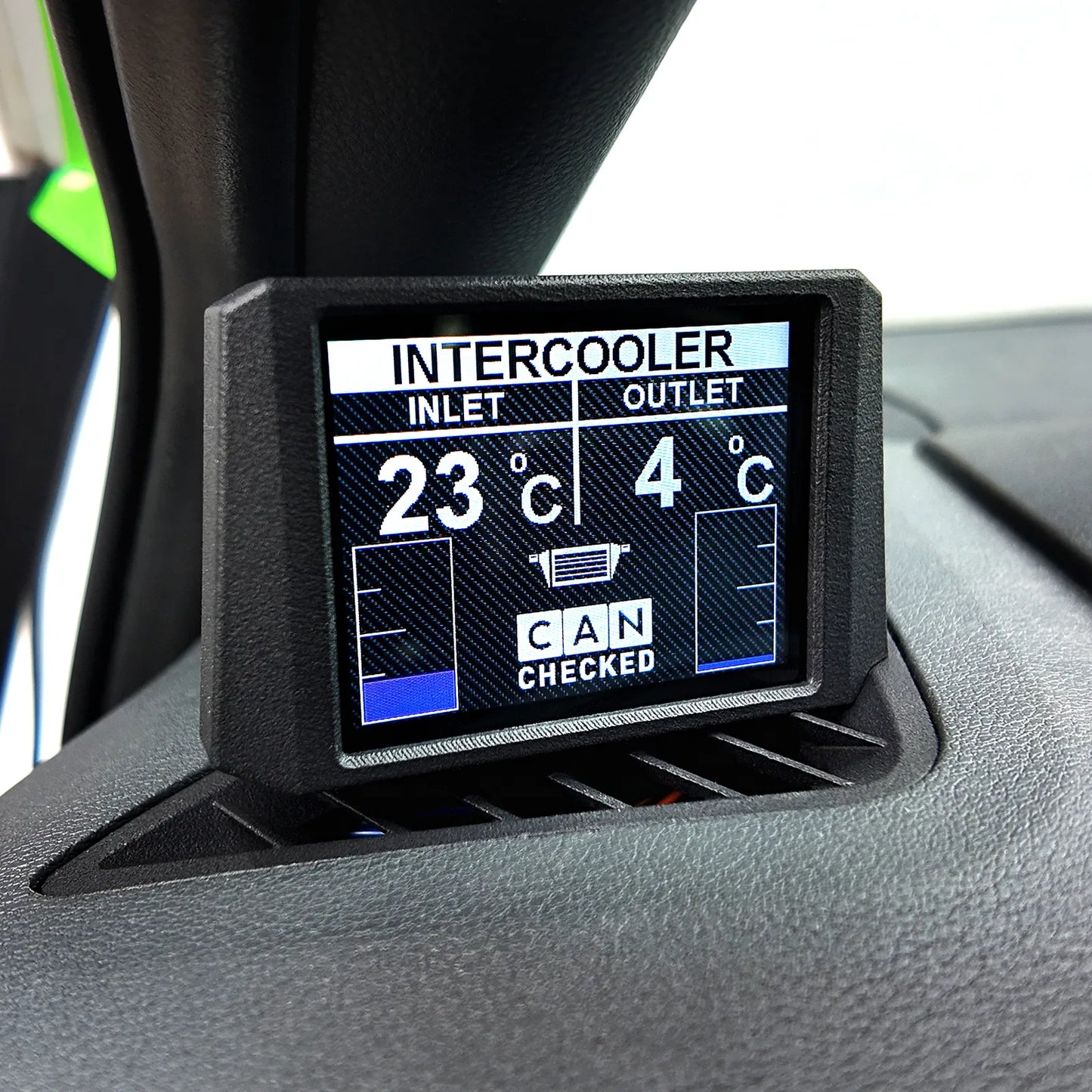

Access to all data from the engine control unit. Meaning, ALL of it. The sensors are queried directly via CAN bus and displayed on our proven  MFD28 . The Toyota Corolla display comes with a vehicle-specific bezel and blends into the interior like an original part.

The sensors are queried via the manufacturer-specific CAN bus protocol. We have optimized the protocol to achieve maximum query speed.

Key Features:

  • integrates perfectly into the vehicle interior
  • Up to 128 sensors can be queried
  • 10 individually configurable views with our  DSS - Display Setup Software
  • Ready-made views for a quick start with our display
  • simply plug and play via our cable set - plug in, done
  • 4 additional analog inputs for exhaust gas temperature, oil pressure and more
  • Ethanol sensor connection directly to the display
  • best readability - optional anti-reflective film included
  • Query the sensors like manufacturer diagnostic tools



Access to all data from the engine control unit


By default, we provide your display with a pre-built TRX file. This file defines all the sensors that will be queried.

Temperatures:

  • Engine water temperature, intake temperature, exhaust temperature, transmission temperature

Pressures:

  • Boost pressure, ambient pressure, oil pressure

Lambda/mixture

  • Lambda value target/actual, short-term lambda adjustment, long-term lambda adjustment, MAF, engine load, torque

Driver dynamics:

  • Brake pressure, vehicle speed, throttle angle/accelerator pedal position

Miscellaneous

  • Speed, ignition angle total, gear, battery voltage, ignition angle retardation per cylinder

Analog inputs

  • Additional sensors can be added here: oil temperature, fuel pressure, oil pressure, exhaust gas temperature, etc. but also an ethanol sensor (Flex Fuel)
